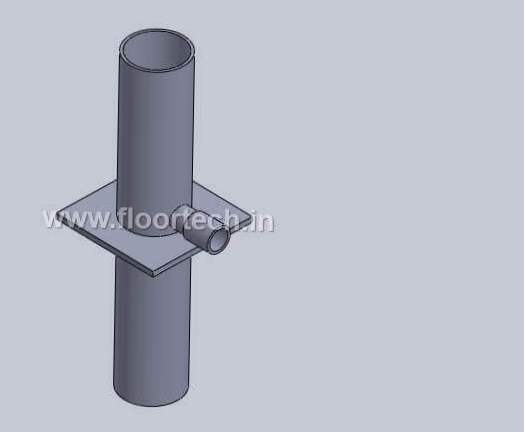

This type of puddle flange is having an inlet mouth at the main body of the pipe. The center puddle with coarse aggregate molding will increase the grip of the product with the concrete. The side inlet mouth could be provided with any size. The side mouth could be given either coupler end or without coupler end as per customer requirement.
| PVC Side Mouth puddle flange | UPVC Side Mouth puddle flange | CPVC Side Mouth puddle flange |
|---|---|---|
| 20mm Side Mouth puddle flange (or) 1/2" Side Mouth puddle flange |
15mm Side Mouth puddle flange (or) 1/2" Side Mouth puddle flange |
15mm Side Mouth puddle flange (or) 1/2" Side Mouth puddle flange |
| 25mm Side Mouth puddle flange (or) 3/4" Side Mouth puddle flange |
20mm Side Mouth puddle flange (or) 3/4" Side Mouth puddle flange |
20mm Side Mouth puddle flange (or) 3/4" Side Mouth puddle flange |
| 32mm Side Mouth puddle flange (or) 1" Side Mouth puddle flange |
25mm Side Mouth puddle flange (or) 1" Side Mouth puddle flange |
25mm Side Mouth puddle flange (or) 1" Side Mouth puddle flange |
| 40mm Side Mouth puddle flange (or) 1 1/4" Side Mouth puddle flange |
32mm Side Mouth puddle flange (or) 1 1/4" Side Mouth puddle flange |
32mm Side Mouth puddle flange (or) 1 1/4" Side Mouth puddle flange |
| 50mm Side Mouth puddle flange (or) 1 1/2" Side Mouth puddle flange |
40mm Side Mouth puddle flange (or) 1 1/2" Side Mouth puddle flange |
40mm Side Mouth puddle flange (or) 1 1/2" Side Mouth puddle flange |
| 63mm Side Mouth puddle flange (or) 2" Side Mouth puddle flange |
50mm Side Mouth puddle flange (or) 2" Side Mouth puddle flange |
50mm Side Mouth puddle flange (or) 2" Side Mouth puddle flange |
| 75mm Side Mouth puddle flange (or) 2 1/2" Side Mouth puddle flange |
65mm Side Mouth puddle flange (or) 2 1/2" Side Mouth puddle flange |
65mm Side Mouth puddle flange (or) 2 1/2" Side Mouth puddle flange |
| 90mm Side Mouth puddle flange (or) 3" Side Mouth puddle flange |
80mm Side Mouth puddle flange (or) 3" Side Mouth puddle flange |
80mm Side Mouth puddle flange (or) 3" Side Mouth puddle flange |
| 110mm Side Mouth puddle flange (or) 4" Side Mouth puddle flange |
100mm Side Mouth puddle flange (or) 4" Side Mouth puddle flange |
100mm Side Mouth puddle flange (or) 4" Side Mouth puddle flange |
| 125mm Side Mouth puddle flange (or) 4 1/2" Side Mouth puddle flange |
150mm Side Mouth puddle flange (or) 6" Side Mouth puddle flange |
150mm Side Mouth puddle flange (or) 6" Side Mouth puddle flange |
| 140mm Side Mouth puddle flange (or) 5" Side Mouth puddle flange |
||
| 160mm Side Mouth puddle flange (or) 6" Side Mouth puddle flange |
||
| 180mm Side Mouth puddle flange (or) 7" Side Mouth puddle flange |
||
| 200mm Side Mouth puddle flange (or) 8" Side Mouth puddle flange |
||
| 225mm Side Mouth puddle flange (or) 9" Side Mouth puddle flange |
||
| 250mm Side Mouth puddle flange (or) 10" Side Mouth puddle flange |
||
| 280mm Side Mouth puddle flange (or) 11" Side Mouth puddle flange |
||
| 315mm Side Mouth puddle flange (or) 12" Side Mouth puddle flange |
||
| 355mm Side Mouth puddle flange (or) 14" Side Mouth puddle flange |
||
| 400mm Side Mouth puddle flange (or) 16" Side Mouth puddle flange |
