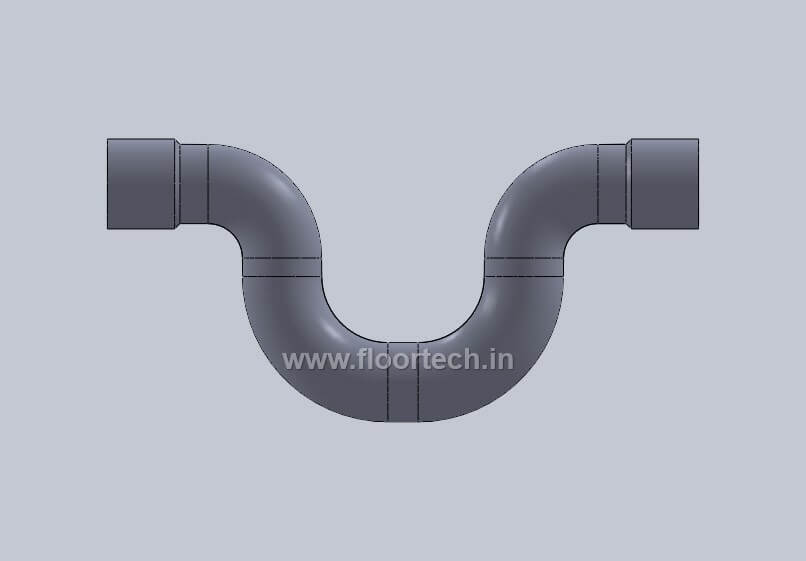

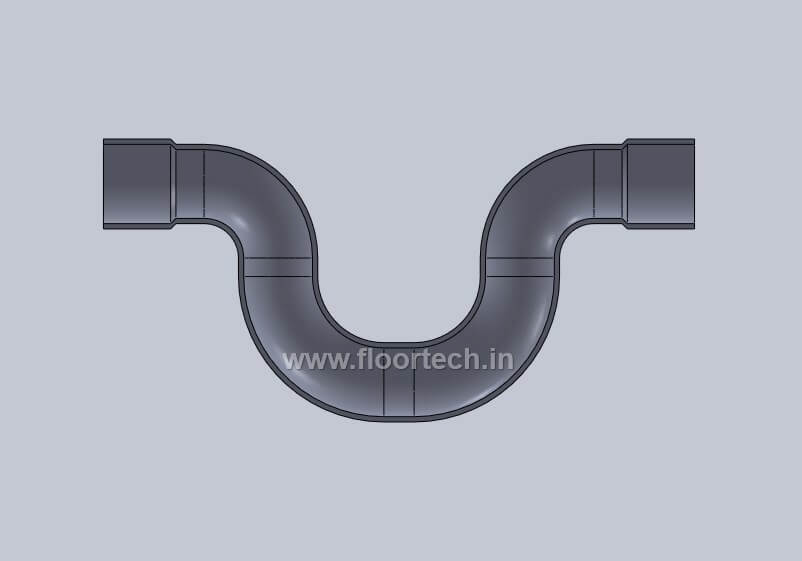

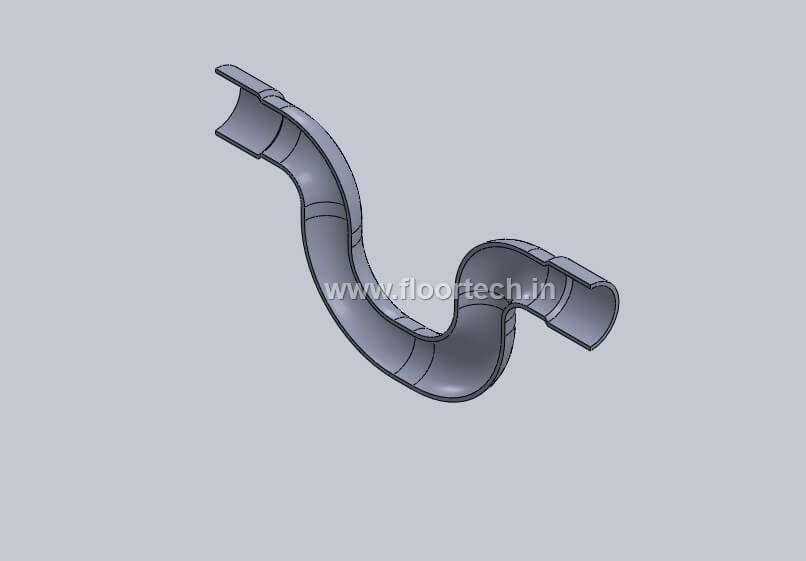

This type of trap is used to create water seal in between the normally flowing plumbing line. when A/C drains are let into the plumbing system the foul smell might enter into the living room if sufficient water seal is not provided in the drain pipe. in such cases using online trap is professional way to connect these drains into the waste lines.
| PVC online model | UPVC online model | CPVC online model |
|---|---|---|
| 20mm online model (or) 1/2" online model |
15mm online model (or) 1/2" online model |
15mm online model (or) 1/2" online model |
| 25mm online model (or) 3/4" online model |
20mm online model (or) 3/4" online model |
20mm online model (or) 3/4" online model |
| 32mm online model (or) 1" online model |
25mm online model (or) 1" online model |
25mm online model (or) 1" online model |
| 40mm online model (or) 1 1/4" online model |
32mm online model (or) 1 1/4" online model |
32mm online model (or) 1 1/4" online model |
| 50mm online model (or) 1 1/2" online model |
40mm online model (or) 1 1/2" online model |
40mm online model (or) 1 1/2" online model |
| 63mm online model (or) 2" online model |
50mm online model (or) 2" online model |
50mm online model (or) 2" online model |
| 75mm online model (or) 2 1/2" online model |
65mm online model (or) 2 1/2" online model |
65mm online model (or) 2 1/2" online model |
| 90mm online model (or) 3" online model |
80mm online model (or) 3" online model |
80mm online model (or) 3" online model |
| 110mm online model (or) 4" online model |
100mm online model (or) 4" online model |
100mm online model (or) 4" online model |
| 125mm online model (or) 4 1/2" online model |
150mm online model (or) 6" online model |
150mm online model (or) 6" online model |
| 140mm online model (or) 5" online model |
||
| 160mm online model (or) 6" online model |
||
| 180mm online model (or) 7" online model |
||
| 200mm online model (or) 8" online model |
||
| 225mm online model (or) 9" online model |
||
| 250mm online model (or) 10" online model |
||
| 280mm online model (or) 11" online model |
||
| 315mm online model (or) 12" online model |
||
| 355mm online model (or) 14" online model |
||
| 400mm online model (or) 16" online model |
