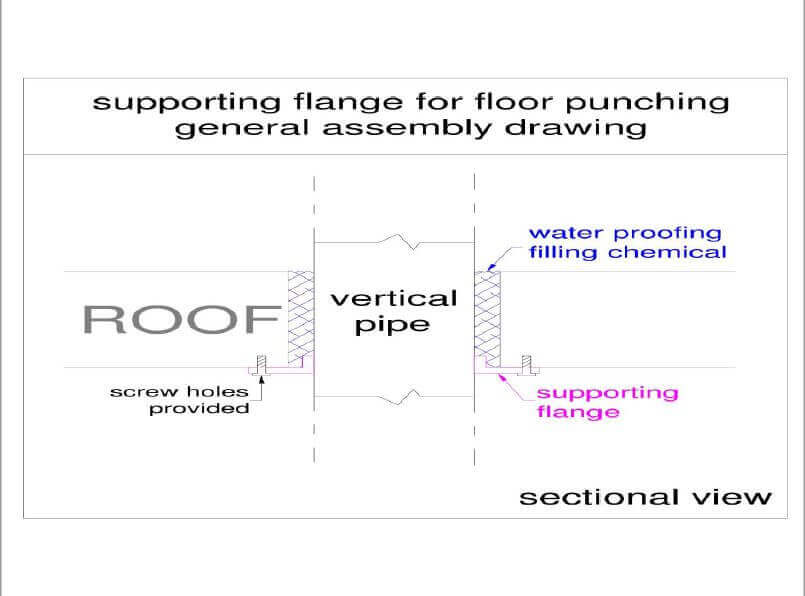

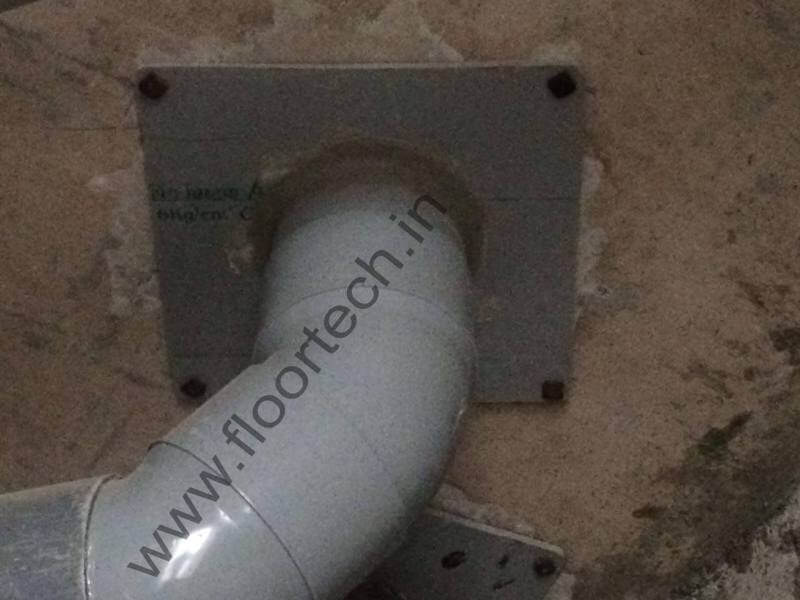

supporting flange is For core cutting chemical filling at roof slabs.Avoids wastage of core cutting filling chemical due to leakage. Maintains perfect verticality of the inserted pipe in slab. Additional supporting strength for the vertical pipe and chemical filling.

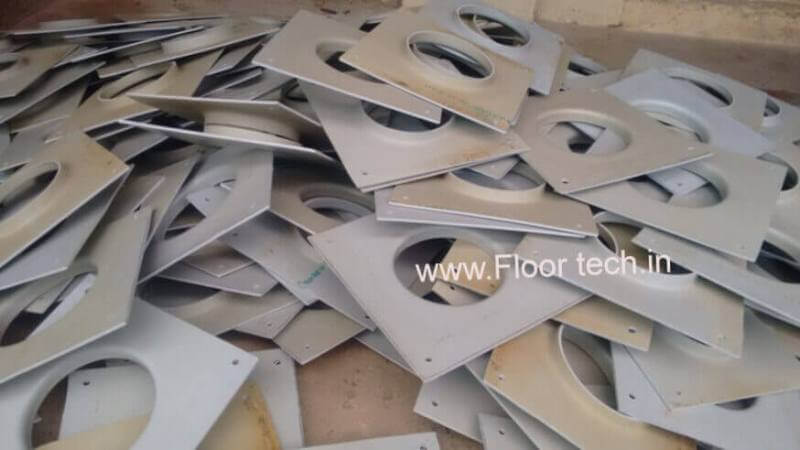

| PVC supporting flange | UPVC supporting flange | CPVC supporting flange |
|---|---|---|
| 20mmsupporting flange (or) 1/2"supporting flange |
15mmsupporting flange (or) 1/2"supporting flange |
15mmsupporting flange (or) 1/2"supporting flange |
| 25mmsupporting flange (or) 3/4"supporting flange |
20mmsupporting flange (or) 3/4"supporting flange |
20mmsupporting flange (or) 3/4"supporting flange |
| 32mmsupporting flange (or) 1"supporting flange |
25mmsupporting flange (or) 1"supporting flange |
25mmsupporting flange (or) 1"supporting flange |
| 40mmsupporting flange (or) 1 1/4"supporting flange |
32mmsupporting flange (or) 1 1/4"supporting flange |
32mmsupporting flange (or) 1 1/4"supporting flange |
| 50mmsupporting flange (or) 1 1/2"supporting flange |
40mmsupporting flange (or) 1 1/2"supporting flange |
40mmsupporting flange (or) 1 1/2"supporting flange |
| 63mmsupporting flange (or) 2"supporting flange |
50mmsupporting flange (or) 2"supporting flange |
50mmsupporting flange (or) 2"supporting flange |
| 75mmsupporting flange (or) 2 1/2"supporting flange |
65mmsupporting flange (or) 2 1/2"supporting flange |
65mmsupporting flange (or) 2 1/2"supporting flange |
| 90mmsupporting flange (or) 3"supporting flange |
80mmsupporting flange (or) 3"supporting flange |
80mmsupporting flange (or) 3"supporting flange |
| 110mmsupporting flange (or) 4"supporting flange |
100mmsupporting flange (or) 4"supporting flange |
100mmsupporting flange (or) 4"supporting flange |
| 125mmsupporting flange (or) 4 1/2"supporting flange |
150mmsupporting flange (or) 6"supporting flange |
150mmsupporting flange (or) 6"supporting flange |
| 140mmsupporting flange (or) 5"supporting flange |
||
| 160mmsupporting flange (or) 6"supporting flange |
||
| 180mmsupporting flange (or) 7"supporting flange |
||
| 200mmsupporting flange (or) 8"supporting flange |
||
| 225mmsupporting flange (or) 9"supporting flange |
||
| 250mmsupporting flange (or) 10"supporting flange |
||
| 280mmsupporting flange (or) 11"supporting flange |
||
| 315mmsupporting flange (or) 12"supporting flange |
||
| 355mmsupporting flange (or) 14"supporting flange |
||
| 400mmsupporting flange (or) 16"supporting flange |
